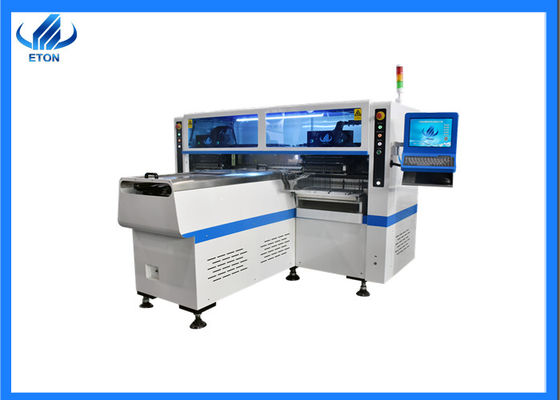

led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor

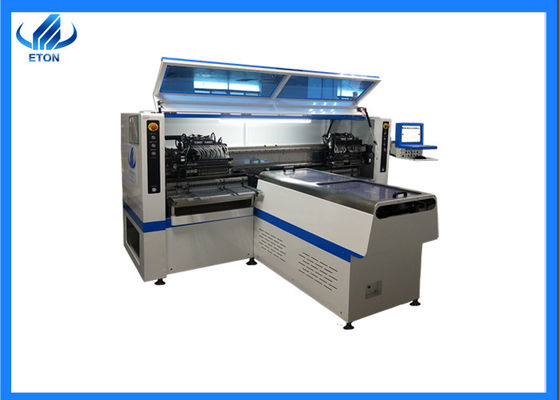

led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor

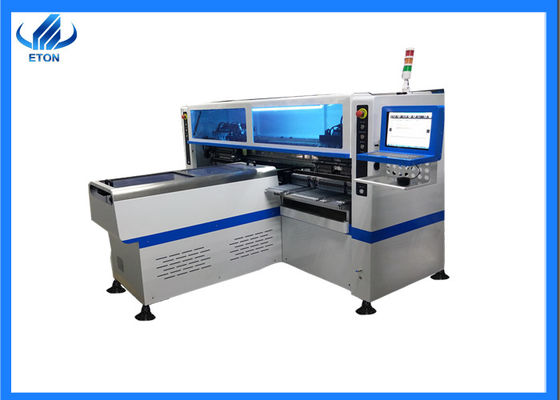

led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor

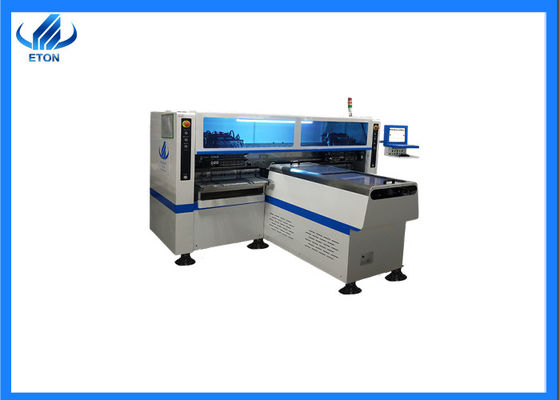

Grote Afbeelding :  led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor

Productdetails:
Plaats van herkomst: CHINA
Merknaam: eton
Certificering: ccc,ce,sira
Modelnummer: ht-t9
Document: Productenbrochure PDF
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1 eenheid
Prijs: $ 95,000 /unit
Verpakking Details: Waterdichte materiële verpakking en houten geval
Levertijd: 30 het werkdagen
Betalingscondities: L/C, T/T
Levering vermogen: 80 eenheden per maanden
Contact
Gedetailleerde productomschrijving
PCB-grootte: 250mm*any lengte PCB-klem; ing: regelbare pneumatische druk
Systeem: windows7 Software: R&D onafhankelijk
Vertoning: touch screenmonitor invoerapparaat: toetsenbord, muis
Nr van Camera: 5 Macht: 380AC 50HZ
machtsconsmption: 6kw opzettende wijze: Groep groep stok
Componentenruimte: 0.2mm voedersposten: 64PCS
Pijpen: 64PCS Opzettende snelheid: 200000CPH
Opzettende Hoogte: 13mm







1.product details



Components: LED3014/3020/3528/5050 and resistor,capacitors,bridge rectifiers,etc.

Application:5m,50m or any length of flexible strip and roll to roll;RGB

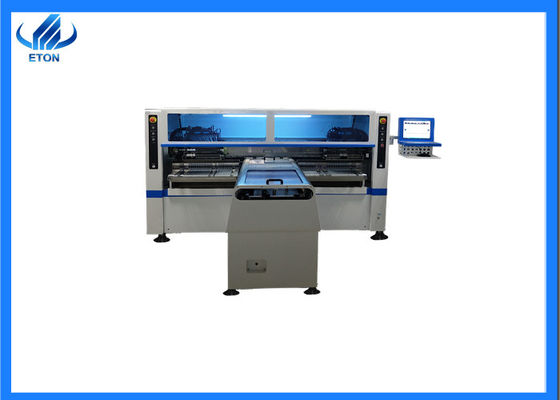

led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 0





2.product Technical parameters​  of high speed pick and place machine



Model number HT-T9
Dimension 2450*2100*1550mm
PCB size 250mm*any length
PCB thickness 0.5～1.5mm
PCB clamping adjustable pressure pneumatic
mounting mode group to take and group to mount
system windows 7
display touch screen monitor
input device keyboard,mouse
NO.of camera 5 sets of imported camera
mounting precision ±0.02mm
mounting height <13mm
mounting speed 200000CPH
components space 0.2mm
NO.of feedings station 64pcs
NO.of nozzles 64pcs
power 380AC 50HZ
power consumption 6KW
operating environment 23℃±3℃
conveyor transmission any length
transmission speed >500mm/sec
transmission direction single(left→right,right→left)
transmission mode online drive
position mode optical
Air Force 0.5mpa
electrical control independent research and development by ETON
motion control card module 1set independent research and development by ETON
X.Y axis drive way high-end magnetic linear motor+servo motor
feeding way electric feeder with double motor


led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 1



 3.product features of smt pick and place machine

  • X,Y,Z drive way is high-end magnetic linear motor+servo motor.
  • PCB clamping is adjustable pressure pneumatic.
  • Vision for the flight identification ,mark correction.
  • Electronic feeder feeding system.
  • Non-stop material re-loading function.
  • Auto-optimization after coordinates generated.

led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 2





4. The warranty


Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.





 5.product parts of smt mounter



led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 3



led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 4









6.Packing & delivery of smt mounter machine





led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 5








7.Company profile



led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 6

led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 7



led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 8

Business terms:



Accepted delivery terms EXW, FOB, CIF, CFR
Accepted payment currency USD,CNY
Accepted payment type L/C, T/T
Nearest port Shenzhen



8.Our  Our certificates and certifications



led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 9




9. trade show




led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 10




10. FAQ



led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 11











led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 12







contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825













Industry related knowledge



  • SMT Placement Machine Operation Flow
  • Check before SMT placement machine starts
  • Check air pressure, rated voltage is normal;
  • Check the equipment for impurities, foreign bodies;
  • Check Fida for abnormal placement;
  • Check the suction nozzle configuration status is abnormal;
  • Check that the safety guard is abnormal;
  • Check whether there are unsafe safety hazards around the equipment.
  • SMT the main switch of the placement machine
  • Turn on the voltage stabilizer switch;
  • Turn on the air pressure switch;
  • Rotate the main switch on the front of the equipment clockwise;
  • According to the material configuration list, check the material tray specification, model, installation position is correct.
