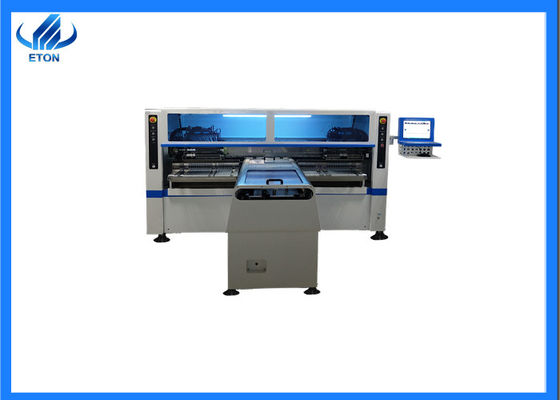

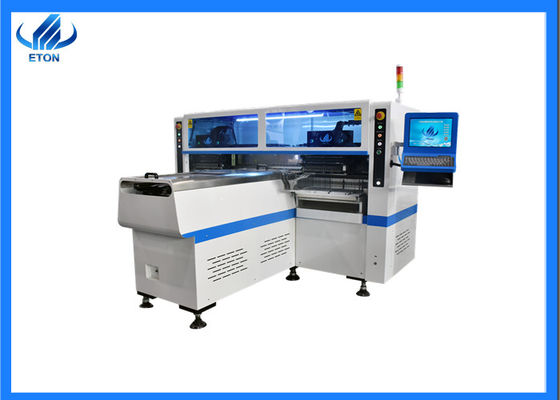

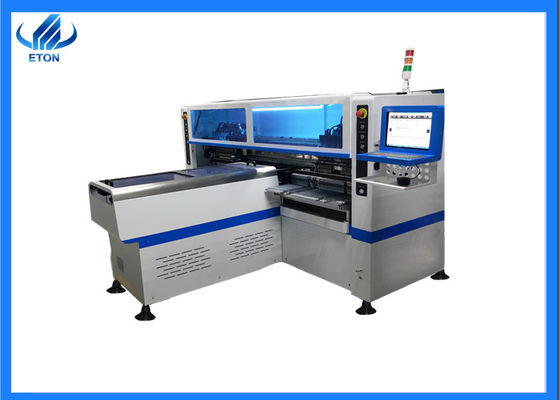

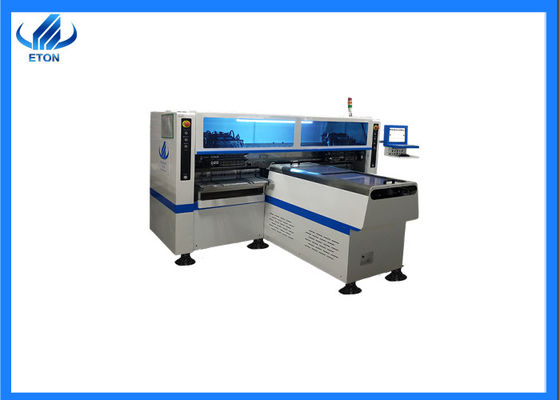

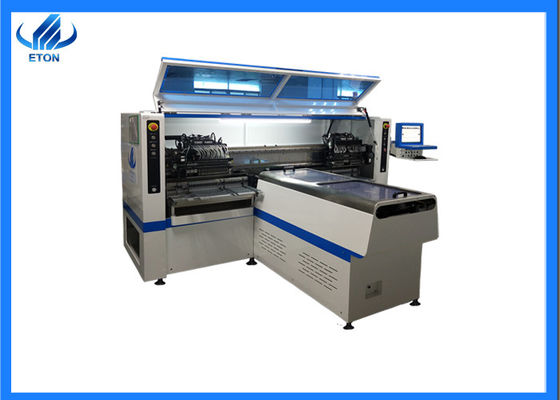

HT-X9 is dual-arm magnetic levitation LED high speed pick and place machine.the capacity reach 200000CPH.It is Suitable for 0.5M,1M Strip, Tube and Panel Light.it can mount LED 3014/3020/3528/5050 and resistor,capacitors,bridge rectifiers,etc.
6.Company profile
Business terms:
| Accepted delivery terms |
EXW, FOB, CIF, CFR |
| Accepted payment currency |
USD,CNY |
| Accepted payment type |
L/C, T/T |
| Nearest port |
Shenzhen |
7.Our Our certificates and certifications
8. trade show
9. FAQ
contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825
Industry related knowledge
Adaptability of SMT placement machine
- Adjustment of SMT placement machine
When the SMT placement machine is converted from assembling one type of PCB to assembling another type of PCB, the re-programming of the placement machine, the replacement of the feeder, the adjustment of the PCB transmission mechanism and the positioning table, and the adjustment / replacement of the SMT patch head should be carried out.
1 Programming the placement machine. Two programming methods, manual instruction programming and computer programming, are commonly used in placement machines. Low-grade placement machines often use manual teaching programming, higher-grade placement machines are computer programming;
2 Replacement of feeder. (a) In order to reduce the time taken to replace the feeder, the most common method is to use the "quick release" feeder, and the faster method is to replace the feeder rack so that the feeder of the components on each PCB type is mounted on a separate feeder rack for replacement;
③PCB transfer mechanism and positioning table adjustment. When the PCB size of the replacement is different from the PCB size of the current mount, adjust the width of the PCB positioning table and the conveyor PCB. Automatic placement machine can be automatically adjusted under the control of the program, lower-grade placement machine can be manually adjusted;
4 Adjustment and replacement of patch head. When the type of components to be pasted on the PCB exceeds the mount range of a patch head, or when the PCB type is replaced, the patch head is often replaced or adjusted. Most of the patch function under the control of the program automatic replacement / adjustment process, while low-grade placement machine with manual replacement and adjustment operation;
SMT factors affecting the adaptability of the placement machine: SMT the movement range of the placement machine transmission system and the mounting head, the number and type of feeder installed by the placement machine, the programming ability, and the change time of the placement machine.
