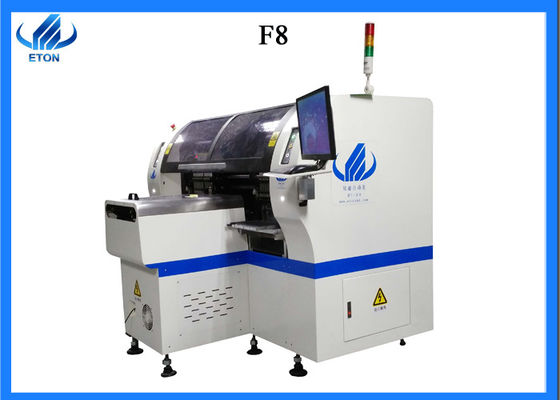

smd mounting machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor

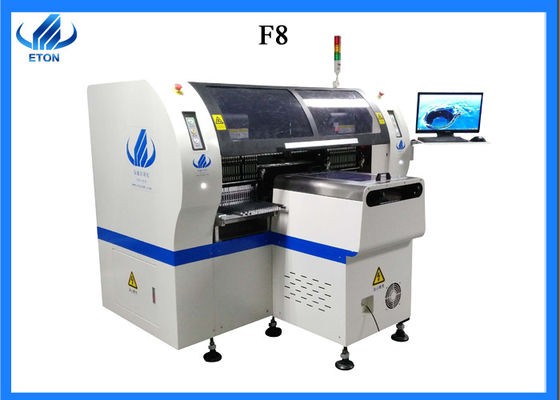

smd mounting machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor

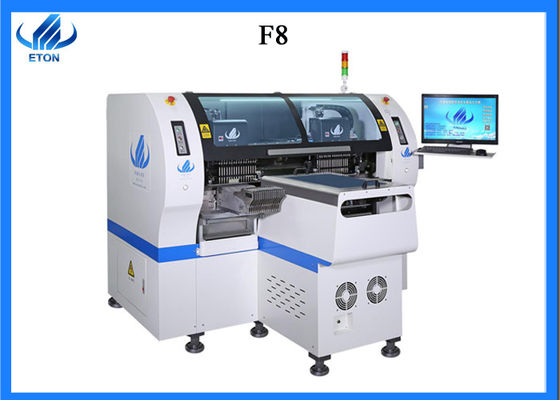

smd mounting machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor

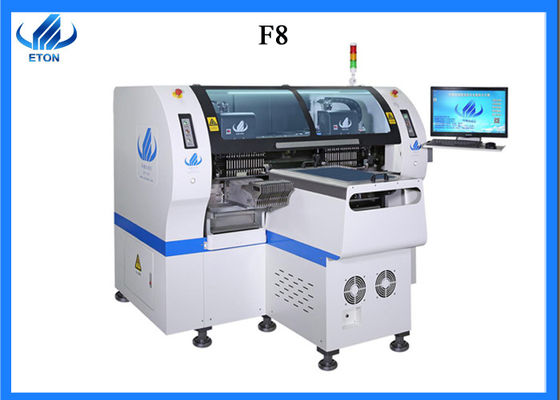

Grote Afbeelding :  smd mounting machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor

Productdetails:
Plaats van herkomst: CHINA
Merknaam: eton
Certificering: ccc,ce,sira
Modelnummer: ht-f8
Document: Productenbrochure PDF
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1 eenheid
Prijs: $70,000.00/unit
Verpakking Details: Waterdichte materiële verpakking en houten geval
Levertijd: 30 het werkdagen
Betalingscondities: L/C, T/T
Levering vermogen: 80 eenheden per maanden
Contact
Gedetailleerde productomschrijving
PCB-grootte: 80 * 110 mm ~ 345 * 600 mm PCB-klem; ing: regelbare pneumatische druk
Systeem: windows7 Software: R&D onafhankelijk
Vertoning: touch screenmonitor invoerapparaat: toetsenbord, muis
Nr van Camera: 5 Macht: 380AC 50HZ
machtsconsmption: 5KW opzettende wijze: Te nemen groep en op te zetten groep
Componentenruimte: 0.2mm voedersposten: 32pcs
Pijpen: 32pcs Opzettende snelheid: 150000CPH
Opzettende Hoogte: 15mm

1.product details



Components: LED2121/2727/3528/5050 and resistor,capacitors,bridge rectifiers,etc.

Application:LED display

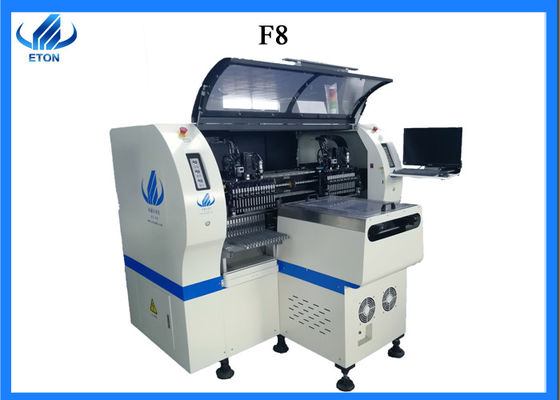

smd mounting machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 0





2.product Technical parameters​  of high speed pick and place machine



Model number HT-F8
Dimension 1600*1900*1550mm
PCB size 80*110～345*600mm
PCB thickness 0.5～5mm
mounting mode group to take and group to mount
system windows 7
display LED monitor
input device keyboard,mouse
NO.of camera 5 sets of imported camera
mounting precision ±0.02mm
mounting height <15mm
mounting speed 150000CPH
components space 0.2mm
NO.of feedings station 32pcs
NO.of nozzles 32pcs
power 220AC 50HZ
power consumption 5KW
operating environment 23℃±3℃
conveyor transmission MAX length:1200mm
transmission speed >500mm/sec
transmission direction single(left→right,right→left)
transmission mode Auto online drive
position mode optical
air pressure >5.0kg/c㎡
electrical control independent research and development by ETON
motion control card module 1set independent research and development by ETON
X.Y axis drive way servo motor
feeding way electric feeder with double motor


smd mounting machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 1






 3.product features of smt pick and place machine

  • X,Y,Z drive way is high-end magnetic linear motor+servo motor.
  • PCB clamping is adjustable pressure pneumatic.
  • Vision for the flight identification ,mark correction.
  • Electronic feeder feeding system.
  • Non-stop material re-loading function.
  • Auto-optimization after coordinates generated.

smd mounting machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 2



4.Packing & shipping of smt mounter machine


Packaging materials Waterproof material and wooden case
Lead time Delivery within 30 days after receipt of payment..
port Shenzhen
Delivery time Transshipment and partial shipment according to the contract


smd mounting machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 3






5.Company profile

smd mounting machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 4

smd mounting machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 5



smd mounting machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 6


smd mounting machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 7


6.Our  Our certificates and certifications

smd mounting machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 8


7.our services
smd mounting machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 9

8. trade show


smd mounting machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 10







smd mounting machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 11












  • Visual alignment, MARK correction

Based on the image information read by the camera, the XYZ movement required for positioning is automatically calculated, and then the XYZ correction of the workpiece is realized by controlling the movement of a three-axis platform (or four-axis platform), so as to achieve the purpose of accurate alignment. Usually used in on-line production or production line automation of the situation.

To adapt to different components and improve the accuracy and speed of the visual system, the detection pair camera is designed as a camera with high resolution in small field for small Chip components CCD1 and a camera with low resolution in large field for large IC as a reference positioning (MARK point search) camera. When the center of the suction nozzle reaches the center position of the visual field of the middle camera of the detection pair, a trigger signal is issued to obtain the image, and the corresponding light source shines once at the same time as the trigger.
