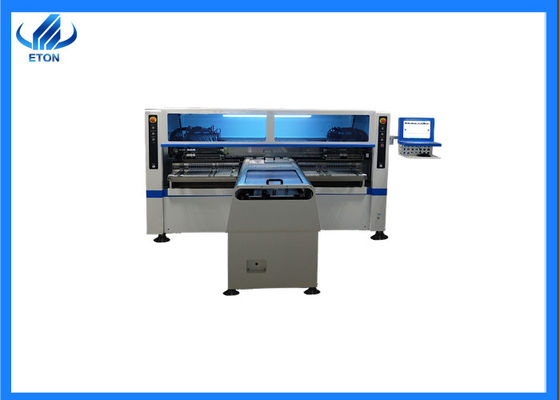

dual-arm levitation LED high speed pick and place machine apply to rigid pcb,flexible strip,led lights assembly machine

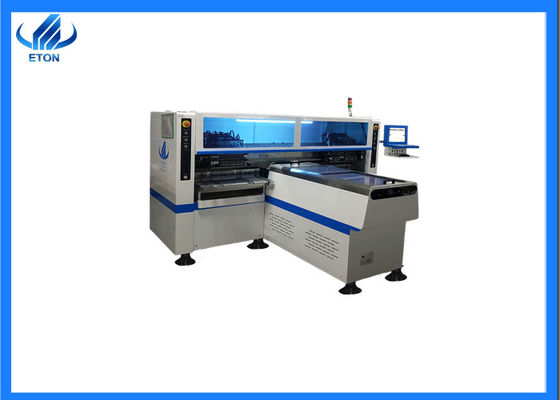

dual-arm levitation LED high speed pick and place machine apply to rigid pcb,flexible strip,led lights assembly machine

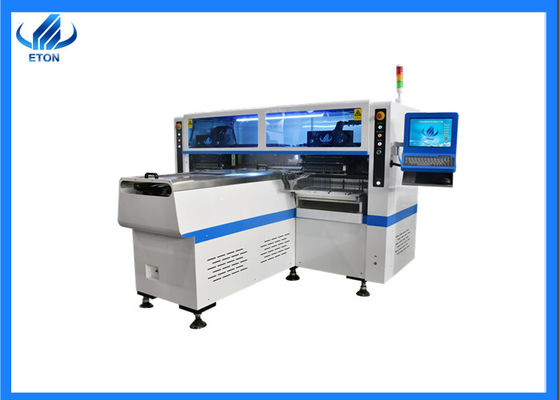

dual-arm levitation LED high speed pick and place machine apply to rigid pcb,flexible strip,led lights assembly machine

Grote Afbeelding :  dual-arm levitation LED high speed pick and place machine apply to rigid pcb,flexible strip,led lights assembly machine

Productdetails:
Plaats van herkomst: CHINA
Merknaam: eton
Certificering: ccc,ce,sira
Modelnummer: Ht-F9
Document: Productenbrochure PDF
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1 eenheid
Prijs: $80000/unit
Verpakking Details: Waterdichte materiële verpakking en houten geval
Levertijd: 30 het werkdagen
Betalingscondities: L/C, T/T
Levering vermogen: 80 eenheden per maanden
Contact
Gedetailleerde productomschrijving
Lengte: 2700mm Breedte: 2120mm
Hoogte: 1550mm totale gewicht: 1400kg
PCB-grootte: 80 * 350 mm ~ 1200 * 350 mm PCB-klem; ing: regelbare pneumatische druk
Systeem: windows7 Software: R&D onafhankelijk
Vertoning: touch screenmonitor invoerapparaat: toetsenbord, muis
Nr van Camera: 5 Macht: 380AC 50HZ
machtsconsmption: 6kw opzettende wijze: Groep groep stok
Componentenruimte: 0.2mm voedersposten: 68PCS
Pijpen: 68PCS Opzettende snelheid: 200000CPH
Opzettende Hoogte: 13mm

1.product details



Producing with 2～４ types of materials with capacity at same time, available for 5m,50m or any length of flexible strip and roll to roll.

Dual-arm four modules with 17 nozzles for each mounting part, and part A/B/C/D can be mounted separately or synchronously.

Calibration automatically, high precision.

Group to take and group to mount.



dual-arm levitation LED high speed pick and place machine apply to rigid pcb,flexible strip,led lights assembly machine 0





2.product features of high speed pick and place machine



dual-arm levitation LED high speed pick and place machine apply to rigid pcb,flexible strip,led lights assembly machine 1

dual-arm levitation LED high speed pick and place machine apply to rigid pcb,flexible strip,led lights assembly machine 2





2.technical parameter of smt mounter machine



Model number HT-F9
Dimension 2700*2120*1550mm
PCB size 1200*330～80*330mm
PCB thickness 0.5～5mm
PCB clamping adjustable pressure pneumatic
mounting mode group to take and group to mount
system windows 7
display touch screen monitor
input device keyboard,mouse
NO.of camera 5 sets of imported camera
mounting precision ±0.03mm
mounting height <13mm
mounting speed 200000CPH
components LED3014/3020/3528/5050 and resistors, capacitors, bridge rectifiers
components space 0.2mm
NO.of feedings station 68pcs
NO.of nozzles 68pcs
power 380AC 50HZ
power consumption 6KW
operating environment 23℃±3℃
conveyor transmission MAX length:1200mm
transmission speed >500mm/sec
transmission direction single(left→right,right→left)
transmission mode online drive
position mode optical
air pressure >5.0kg/c㎡
electrical control independent research and development by ETON
motion control card module 1set independent research and development by ETON
X.Y axis drive way high-end magnetic linear motor+servo motor
feeding way electric feeder with double motor

dual-arm levitation LED high speed pick and place machine apply to rigid pcb,flexible strip,led lights assembly machine 3









3.trade terms of smt mounter machine

Accepted delivery terms EXW, FOB, CIF , CFR
Accepted payment currency USD, CNY
Accepted payment type L/C, T/T
Nearest port Shenzhen


4.Packing & shipping of smt mounter machine


Packaging materials Waterproof material and wooden case
Lead time Delivery within 30 days after receipt of payment..
port Shenzhen
Delivery time Transshipment and partial shipment according to the contract
