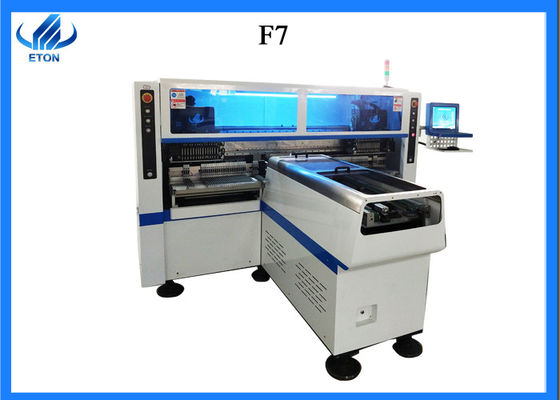

led lights assembly Dual-purpose professional high speed pick and place machine,2～4 type of capacity reach 180K CPH

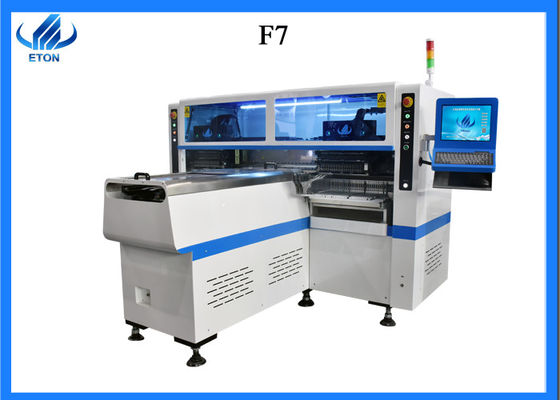

led lights assembly Dual-purpose professional high speed pick and place machine,2～4 type of capacity reach 180K CPH

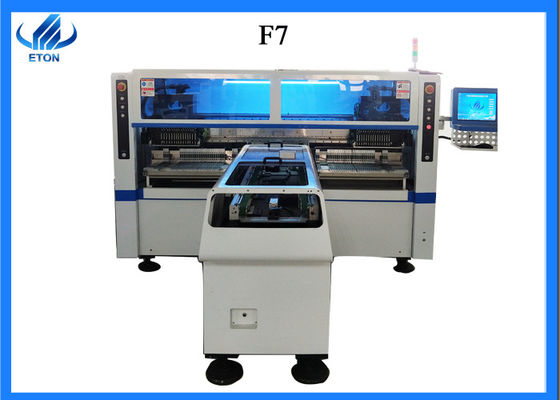

led lights assembly Dual-purpose professional high speed pick and place machine,2～4 type of capacity reach 180K CPH

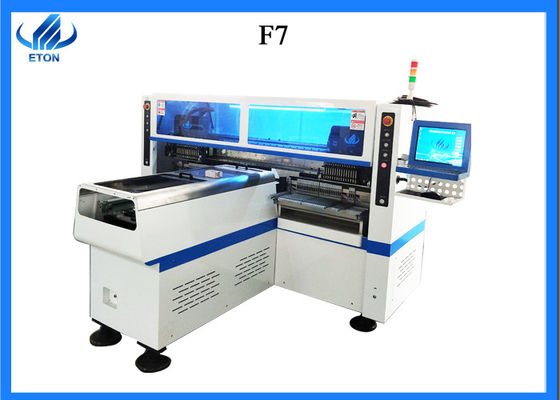

Grote Afbeelding :  led lights assembly Dual-purpose professional high speed pick and place machine,2～4 type of capacity reach 180K CPH

Productdetails:
Plaats van herkomst: CHINA
Merknaam: eton
Certificering: ccc,ce,sira
Modelnummer: ht-f7
Document: Productenbrochure PDF
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1 eenheid
Prijs: $75000.00/unit
Verpakking Details: Waterdichte materiële verpakking en houten geval
Levertijd: 30 het werkdagen
Betalingscondities: L/C, T/T
Levering vermogen: 80 eenheden per maanden
Contact
Gedetailleerde productomschrijving
Lengte: 2700mm Breedte: 2120mm
Hoogte: 1550mm totale gewicht: 1400kg
PCB-grootte: 80*330mm~1200*330mm PCB-klem; ing: regelbare pneumatische druk
Systeem: windows7 Software: R&D onafhankelijk
Vertoning: touch screenmonitor invoerapparaat: toetsenbord, muis
Nr van Camera: 5 Macht: 380AC 50HZ
machtsconsmption: 6kw opzettende wijze: De groep neemt centstok, neemt de cent centstok
Componentenruimte: 0.2mm voedersposten: 68PCS
Pijpen: 34PCS Opzettende snelheid: 150000~180000CPH
Opzettende Hoogte: 13mm

1.product details

Components: LED3014/3020/3528/5050 and resistor,capacitors,bridge rectifiers,etc.

Application: 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m LED flexible strip.

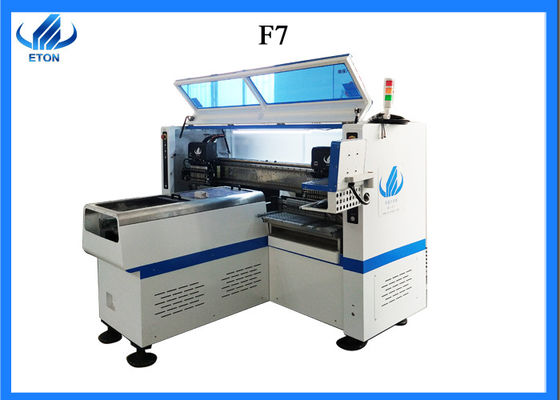

led lights assembly Dual-purpose professional high speed pick and place machine,2～4 type of capacity reach 180K CPH 0





  • X,Y,Z drive way is high-end magnetic linear motor+servo motor.
  • Install 5 camera and adopt vision for the flight identification, mark correction.
  • PCB clamping is electric clamping+adjustable pressure pneumatic.
  • Vision for the flight identification ,mark correction.
  • Electronic feeder feeding system.
  • Non-stop material re-loading function.
  • Auto-optimization after coordinates generated.



led lights assembly Dual-purpose professional high speed pick and place machine,2～4 type of capacity reach 180K CPH 1



2.technical parameter of smt mounter machine

Model number HT-F7
Dimension 2700*2120*1550mm
PCB size 80*330～1200*330mm
PCB thickness 0.5～5mm
PCB clamping adjustable pressure pneumatic
mounting mode group to take and group to mount
system windows 7
display touch screen monitor
input device keyboard,mouse
NO.of camera 5 sets of imported camera
mounting precision ±0.02mm
mounting height <13mm
mounting speed 200000CPH
components space 0.2mm
NO.of feedings station 68pcs
NO.of nozzles 34pcs
power 380AC 50HZ
power consumption 6KW
operating environment 23℃±3℃
conveyor transmission MAX length:1200mm
transmission speed >500mm/sec
transmission direction single(left→right,right→left)
transmission mode online drive
position mode optical
air pressure >5.0kg/c㎡
electrical control independent research and development by ETON
motion control card module 1set independent research and development by ETON
X.Y axis drive way high-end magnetic linear motor+servo motor
feeding way electric feeder with double motor







3.trade terms of smt mounter machine

Accepted delivery terms EXW, FOB, CIF , CFR
Accepted payment currency USD, CNY
Accepted payment type L/C, T/T
Nearest port Shenzhen


4.Packing & shipping of smt mounter machine


Packaging materials Waterproof material and wooden case
Lead time Delivery within 30 days after receipt of payment..
port Shenzhen
Delivery time Transshipment and partial shipment according to the contract


led lights assembly Dual-purpose professional high speed pick and place machine,2～4 type of capacity reach 180K CPH 2





5.our services





led lights assembly Dual-purpose professional high speed pick and place machine,2～4 type of capacity reach 180K CPH 3





6.our clients





led lights assembly Dual-purpose professional high speed pick and place machine,2～4 type of capacity reach 180K CPH 4







led lights assembly Dual-purpose professional high speed pick and place machine,2～4 type of capacity reach 180K CPH 5















contact

Name:Brynn

Email :Brynn@eton-mounter.com

WeChat:13802252825

Telephone:138 0225 2825
