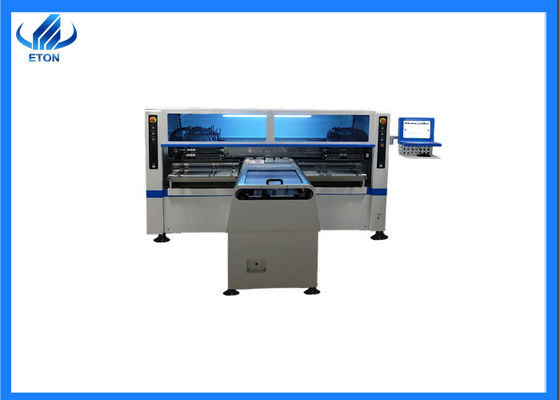

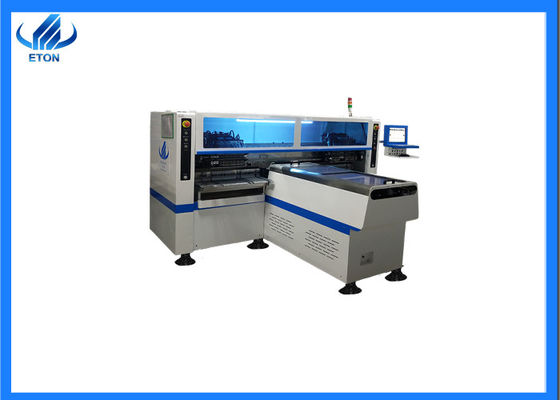

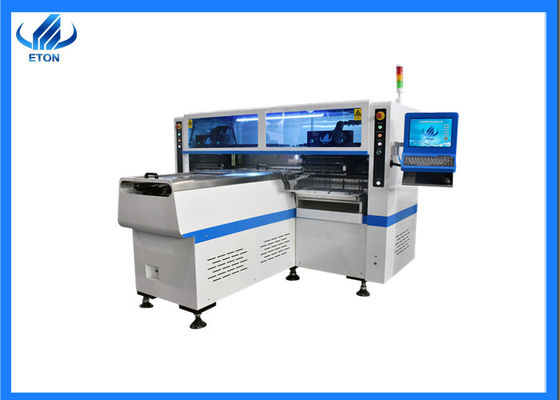

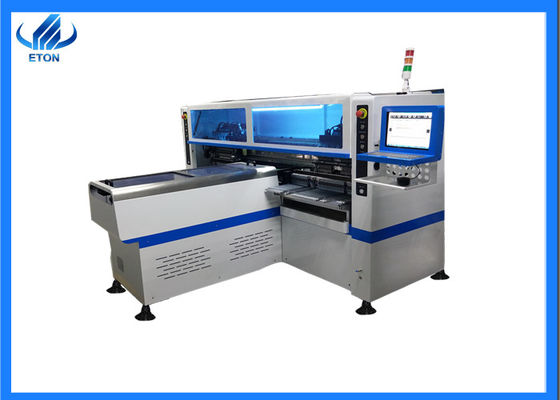

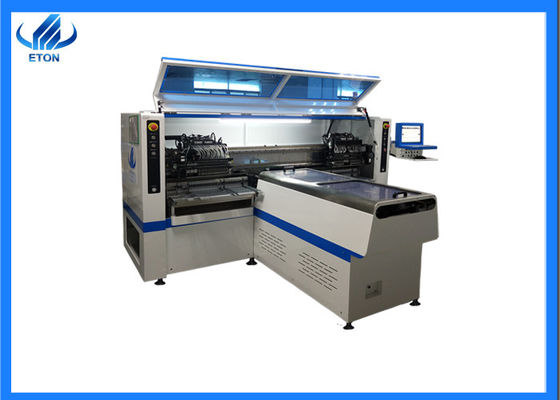

smt mounter magnetic linear motor high speed pick and place machine ht-f9

smt mounter magnetic linear motor high speed pick and place machine ht-f9
smt mounter magnetic linear motor high speed pick and place machine ht-f9 smt mounter magnetic linear motor high speed pick and place machine ht-f9 smt mounter magnetic linear motor high speed pick and place machine ht-f9 smt mounter magnetic linear motor high speed pick and place machine ht-f9 smt mounter magnetic linear motor high speed pick and place machine ht-f9

Grote Afbeelding :  smt mounter magnetic linear motor high speed pick and place machine ht-f9

Productdetails:
Plaats van herkomst: CHINA
Merknaam: eton
Certificering: ccc,ce,sira
Modelnummer: Ht-F9
Document: Productenbrochure PDF
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1unit
Prijs: $80000/unit
Verpakking Details: Waterdicht materieel en houten geval
Levertijd: 30days
Betalingscondities: L/C, T/T
Levering vermogen: 80 eenheden per maanden
Contact
Gedetailleerde productomschrijving
Garantie: 1 JAAR, 12 Maanden Toepassing: LEIDENE vertoning
Productnaam: LEIDENE van de plaatsmachine \ LEIDENE van Mounter \ Assemblagemachine, Automatisch SMT die Schutter Type: SMT-Automatische Machine Verwante Producten,
Gebruik: De Assemblage van de kringsraad

1. product details


  • Producing with 2～４ types of materials with capacity at same time, available for 5m,50m or any length of flexible strip and roll to roll.
  • Dual-arm four modules with 17 nozzles for each mounting part, and part A/B/C/D can be mounted separately or synchronously.
  • Calibration automatically, high precision.
  • Group to take and group to mount.



smt mounter magnetic linear motor high speed pick and place machine ht-f9 0



Technical parameter  of pick and place machine ht-f9

Model number HT-F9
Dimension 2700*2120*1550mm
PCB size 1200*330～80*330mm
PCB thickness 0.5～5mm
PCB clamping adjustable pressure pneumatic
mounting mode group to take and group to mount
system windows 7
display touch screen monitor
input device keyboard,mouse
NO.of camera 5 sets of imported camera
mounting precision ±0.03mm
mounting height <13mm
mounting speed 200000CPH
components LED3014/3020/3528/5050 and resistors, capacitors, bridge rectifiers
components space 0.2mm
NO.of feedings station 68pcs
NO.of nozzles 68pcs
power 380AC 50HZ
power consumption 6KW
operating environment 23℃±3℃
conveyor transmission MAX length:1200mm
transmission speed >500mm/sec
transmission direction single(left→right,right→left)
transmission mode online drive
position mode optical
air pressure >5.0kg/c㎡
electrical control independent research and development by ETON
motion control card module 1set independent research and development by ETON
X.Y axis drive way high-end magnetic linear motor+servo motor
feeding way electric feeder with double motor




product features of smt mounter ht-f9


  • X,Y,Z drive way is high-end magnetic linear motor+servo motor.
  •  Install 5 camera and adopt vision for the flight identification.
  • PCB clamping is adjustable pressure pneumatic
  • Vision for the flight identification ,mark correction
  • Electronic feeder feeding system.
  • Non-stop material re-loading function.
  • Auto-optimization after coordinates generated

smt mounter magnetic linear motor high speed pick and place machine ht-f9 1


Product parts of high speed mounter ht-f9


  • Saline shaft from korea
  • Mark camera from HK vision
  • Grating scale from Renishaw,UK
  • Guideway from IKO Japan
  • Pneumatic components from SMC Japan
  • Sensor from Beckhoff Germany
  • Drag chain from IGUS Germany

smt mounter magnetic linear motor high speed pick and place machine ht-f9 2


Business terms

Accepted delivery terms EXW, FOB, CIF, CFR
Accepted payment currency USD,CNY
Accepted payment type L/C, T/T
Nearest port

Shenzhen


our services

  • We have a professional sales manager to provide you with professional advice and services
  • We provide 24-hour online service to solve your problem quickly
  • We will specify the production plan for you according to your budget
  • 1 year free warranty
  • Visit customers regularly and gather information
  • Provide latest information about technology and equipment
  • Software updates are free for life

smt mounter magnetic linear motor high speed pick and place machine ht-f9 3









Company information

smt mounter magnetic linear motor high speed pick and place machine ht-f9 4
ETON automation equipment co., ltd. is a fast growing high-tech enterprise, we are committed to independent research and development, the quality and performance of the production of machine products have been comparable to international famous brands.
Our products are of high quality and low price. We can provide the best solution to optimize the placement of the production line. We can track customers' products throughout the whole process.
Buying our products can effectively improve production efficiency.
smt mounter magnetic linear motor high speed pick and place machine ht-f9 5


Packing & shipping of smt mounter ht-e5s

Packing details: vacuum packing and wooden case
Shipping: Shenzhen port within 30 days after payment
Port: Shenzhen
Lead time:

Quantity (units) Est. Time (days)
１－２ >２

smt mounter magnetic linear motor high speed pick and place machine ht-f9 6


Our certifications
The company has independently developed a number of intellectual property technologies, including 9 invention patents, 112 practical patents and 12 software Copyrights.Successively obtained“shenzhen high-tech enterprise”,“national high-tech enterprise”, “shenzhen TOP brand”, “2015 LED technology innovation award” ,“industry special contribution award” ,“the 4th China LED first innovation award” ,“industry special contribution award”, “double soft enterprise”and so on.
smt mounter magnetic linear motor high speed pick and place machine ht-f9 7

Our clients
the company has an absolute leading market share in the LED industry, and its products are exported to more than 20 countries including Korea, India, Vietnam, Tunisia, Egypt and Turkey.
smt mounter magnetic linear motor high speed pick and place machine ht-f9 8

Trade shows
Since the establishment of the company, we have actively participated in relevant exhibitions held at home and abroad every year.
smt mounter magnetic linear motor high speed pick and place machine ht-f9 9
smt mounter magnetic linear motor high speed pick and place machine ht-f9 10

smt mounter magnetic linear motor high speed pick and place machine ht-f9 11
