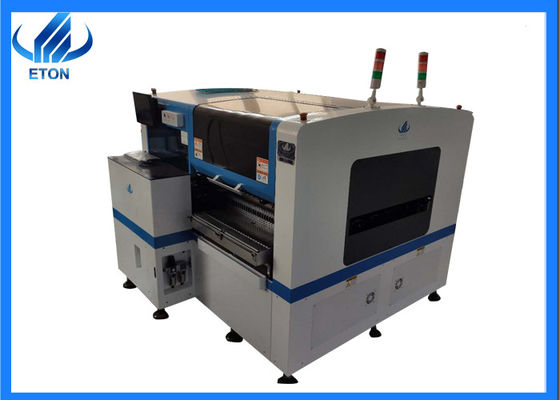

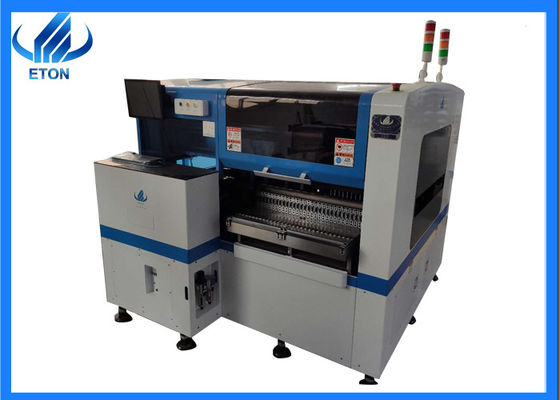

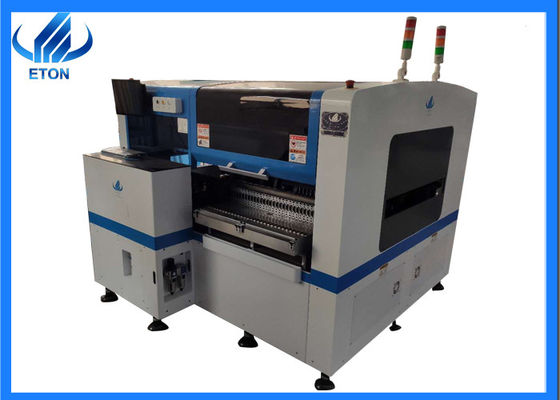

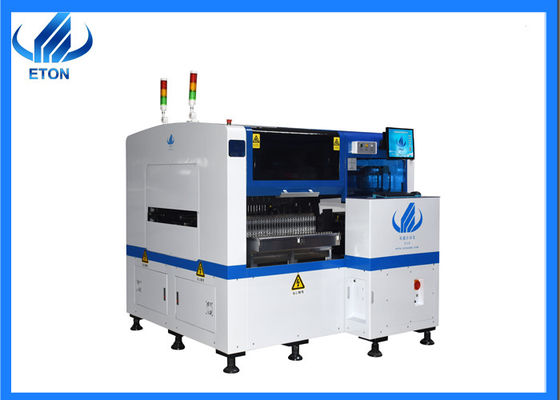

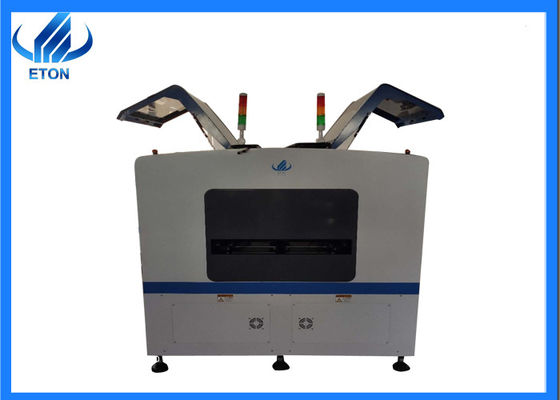

Grote Afbeelding :  LED Tube light mounting machine LED SMT pick and place machine LED production line

Productdetails:
Plaats van herkomst: CHINA
Merknaam: eton
Certificering: CCC,SIRA,CE
Modelnummer: ht-e5d
Document: Productenbrochure PDF
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1 eenheid
Prijs: $75000/unit
Verpakking Details: waterdicht materiaal
Levertijd: 30days
Betalingscondities: L/C, T/T
Levering vermogen: 80 eenheden per Maand
Contact
Gedetailleerde productomschrijving
Toepassing: SMT dat Schuttermachine opzet Punt: De LEIDENE Spaander Mounter, Desktop van SMD leidde oogst en plaatst machine, Samsung-Oogst

LED Tube light mounting machine LED SMT pick and place machine LED production line 0

  • Product details   HT-E5D machine is Dual system,dual module multifunctional mounter with high capacity of 80000CPH. It can mount capacitors,resistors,LED3014/3020/3528/5050,IC and shaped components. It applies to power driver,electric board,lens,linear bulb,household appliance and etc.
  • LED Tube light mounting machine LED SMT pick and place machine LED production line 1

 technical parameter

Place of origin Guangdong,China
Model number HT-E5D
dimension 1650*2000*1550
PCB size 100*100～500*300
PCB thickness 0.5～3mm
components LED,capacitors,resistors,shaped components,etc.
Mounting speed 80000CPH
Mounting mode Group picking and separate placing, separate picking and separate placing.
Mounting precision ±0.02cm
Feeder stations 60pcs
nozzles 16pcs





Product features of smt mounter ht-e5d

  • Dual system,dual module multifunctional mounter; to produce two different product at same time.
  •  X,Y,Z drive way is high-end magnetic linear motor+servo motor.
  •  Install 4 camera and adopt vision for the flight identification.
  • Vision for the flight identification ,mark correction
  • Electronic feeder feeding system.
  • Non-stop material re-loading function.
  • Auto-optimization after coordinates generated





Product parts

  •  Saline shaft from korea
  • Mark camera from HK vision
  • Grating scale from Renishaw,UK
  •  Guideway from IKO Japan
  • Pneumatic components from SMC Japan² Sensor from Beckhoff Germany
  • Drag chain from IGUS Germany

 LED Tube light mounting machine LED SMT pick and place machine LED production line 2





Our services

  • We have a professional sales manager to provide you with professional advice and services
  • We provide 24-hour online service to solve your problem quickly
  • We will specify the production plan for you according to your budget
  • 1 year free warranty
  • Visit customers regularly and gather information
  •  Provide latest information about technology and equipment
  •  Software updates are free for life




company details



Shenzhen ETON automation equipment co., ltd. was established in 2011, which is a high-tech enterprise specializing in the r&d, production, sales and after-sales technical services of SMT high-speed SMT mounter and multifunctional mounter.

As a national brand, ETON automation occupies an absolute leading position in China's LED placement machine industry. At the same time, its products are exported to more than 20 countries, including South Korea, India, Vietnam, Egypt and Turkey.

LED Tube light mounting machine LED SMT pick and place machine LED production line 3
